Slim Channel Top Mounted 1kN

Model No.
  • MOD 9014 Slim Channel
  • Model No.

    MOD 9014 Slim Channel

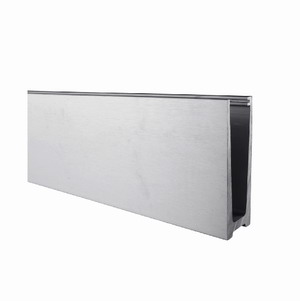

    Aluminium Slim Channel Glass balustrade Satin Finish


    Length: 2500mm / 5000mm


    Weight: 13.50KGS(2500mm)


    Material: 6063T5


    Glass Range: 12mm~21.52mm


    Surface: Anodized Satin Finish

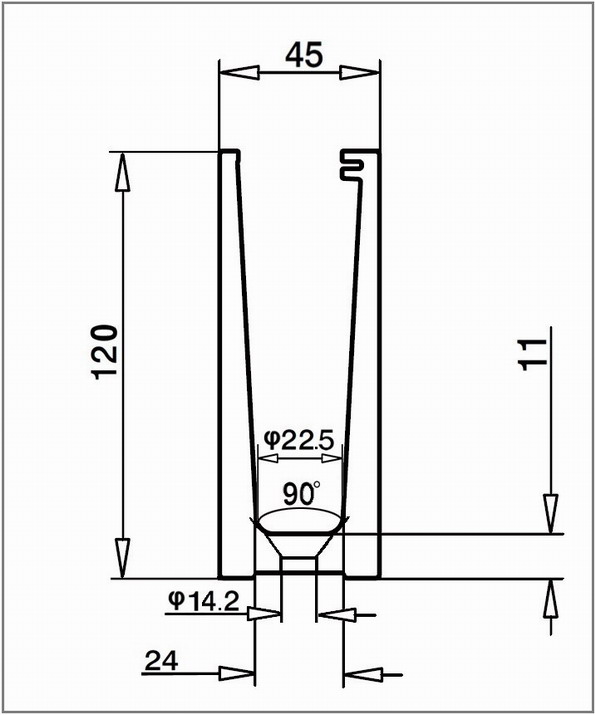

    Drawing:






    Load Capability:


    MarketLoad CapabilityGlass


    0.74kN

    17.52 PVB

    21.52 PVB

    15mm mono


    0.6kN
    16.76~17.52
    1kN20.76~21.52


    0.5kN16.76~17.52
    1kN
    20.76~21.52


    0.8kN
    12.76~17.52
    1.6kN20.76~21.52
    QQ图片20191227104001.jpg2kN20.76~21.52
    QQ图片20191227103028.jpg0.8kN20.76~21.52
    QQ图片20191227103248.jpg0.8kN20.76~21.52
    image.pngQQ图片20191227103841.jpg1kN20.76~21.52























    Testing Data and picture:


    Mod. NoGlass
    kN.M/Deflection(mm)Nr. of wedges
    25mm  BS618035mm  CSTB-303450mm  NS3510
    90148/8/4 PVB0.78kN
    0.85kN1.10kN4
    901410/10/4 PVB0.95kN
    1.15kN1.57kN4
